450 Pump for Copper Concentrate Transfer

Project Background

A copper concentrator needed to move copper concentrate between the thickening and the next process    stage. Copper concentrate slurry is denser and slightly more aggressive than typical tailings, so the    transfer pump has to hold a steady rate without letting seal water dilute the product stream.

Operating Duty

• Pump size: 450-class horizontal slurry pump

• Flow: approximately 700–850 m³/h

• Head: about 30–38 m

• Solids: copper concentrate at roughly 50%–60% by weight, mildly acidic pH

Matec Solution

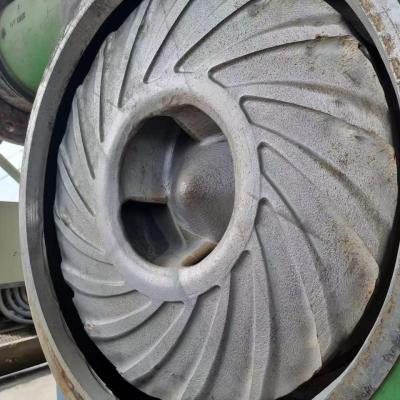

We supplied high-chrome metallic wet-end parts for the 450 pump and configured an expeller-type seal    arrangement to minimize the clean-water flush required at the gland — important where seal water would    otherwise dilute the concentrate. Material certificates and dimensional reports were supplied with the    parts so the plant could record them against its asset register.

Result

The transfer ran at a stable rate through the production shift, and dilution from gland water stayed    within the plant's target. The same pump family has since been supplied on repeat orders for the    concentrate circuit.
