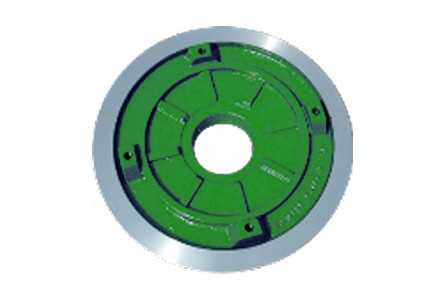

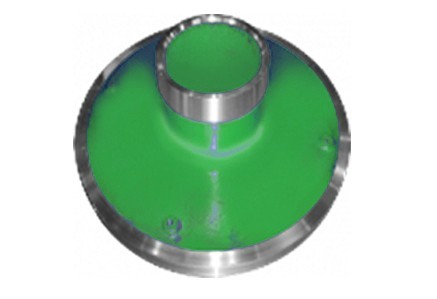

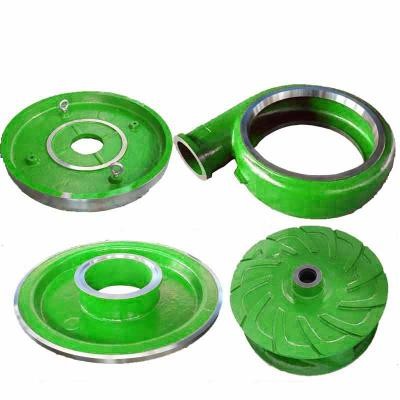

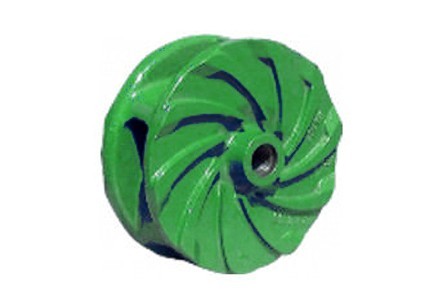

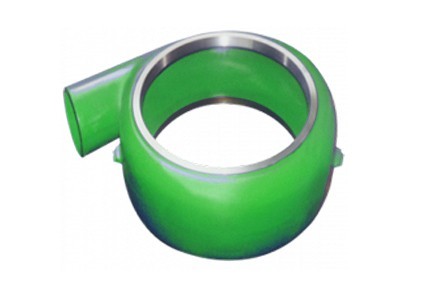

Matec Solutions supply the main Metallic Slurry Pump Parts: Impeller/Volute Liner/Throatbush/Frame Plate Liner Insert, all of them are genuine replacements for Warman Pump Parts, reliable quality enables the steady operation of our customers, high performance of longer wear life help saving the cost. We promise full life cycle guarantee, we take care of our customer and products at any time.
Applications: Mill Discharge, Cyclone Feeding, Concentration Plant Processing, Tailing Pumping, Chemical Slurry, Quarry.
Warman® Pump Parts Equivalent:
| AH | 1.5/1B, 2/1.5B, 3/2C, 4/3C, 4/3D, 6/4D, 6/4E, 8/6E, 8/6R,10/8F, 10/8ST, 12/10ST, 14/12ST, 16/14TU, 20/18TU |
|---|---|
| HH | 1.5/1C, 3/2D, 4/3E, 6/4F, 8/6S |
| L | 50B, 75C, 100D, 150E, 300F, 350S, 400ST, 450ST, 550TU, 650TU |
| M | 10/8E, 10/8F, 12/10E, 12/10F |
| G | 6/4D, 8/6E, 10/8S, 12/10ST, 14/12G, 18/16T |
| SP | 40P, 65Q, 100R, 150S, 200S, 250T, 300T |
| MCR | 350, 450, 550, 650 |
Materials Specification:
| Alloy Grade | Description & Application |
|---|---|
| A05 | Wear resistant white cast iron with hardness over 600HB, delivering excellent performance under erosive conditions. Suitable for mild acidic duties (PH5-14) requiring good erosion resistance. |
| A07 | Martensitic white iron featuring balanced wear resistance and toughness. Hardness: 700-800HB, applicable at pH 6-12. Recommended for highly abrasive mill discharge service. |
| A61 | Hypereutectic white iron suited for high-wear conditions without severe corrosion. Operating pH range: 6–14, hardness 650HB. Service life can reach up to three times that of A05. |
| A49 | Corrosion resistant white iron designed for low-pH corrosive environments accompanied by erosive wear. Especially ideal for FGD applications. |
Features:
• Optimized alloy material with higher anti-abrasiveness and toughness, to ensure longer service life, especially for heavy duty applications like mill discharge, cyclone feeding and tailings;
• Higher performance and efficiency, durable structure, more uptime, less labor, lower cost of ownership.
|
|
|
|
