Dimensionally interchangeable with Warman® G / GH. Matec pumps are manufactured as independent aftermarket replacements and are not affiliated with Weir Minerals.
MG (metal-lined): High-chrome wet end for high-volume sand, gravel and coarse abrasive slurries. MGH (metal / high-chrome): High-head, high-volume execution for dredging and coarse solids where elevated pressures are required.

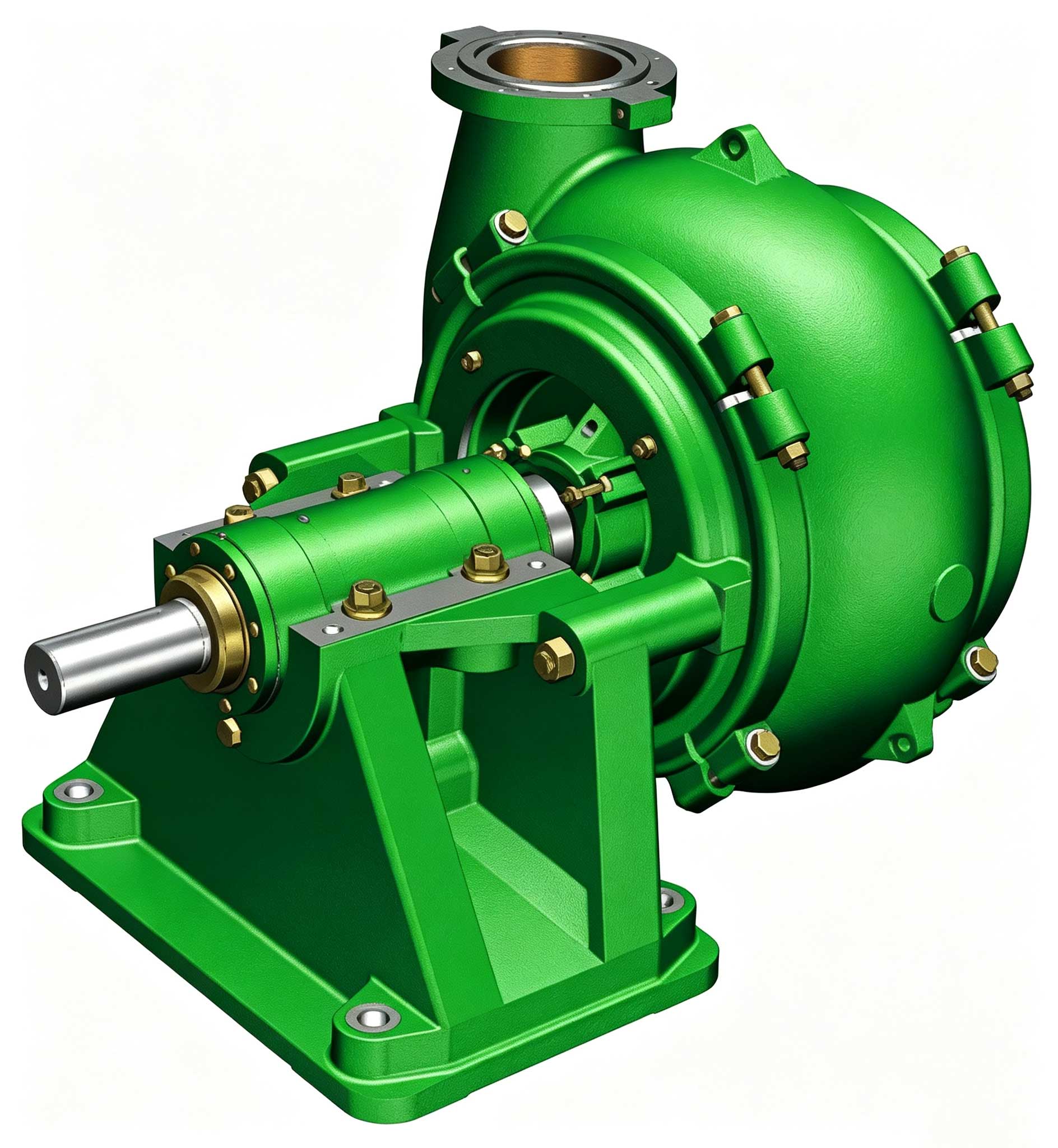

The Matec MG is a high-volume horizontal slurry pump for sand, gravel and coarse solids handling. It is dimensionally interchangeable with the Warman® G series and built for dredging and aggregate applications.
The Matec MGH is the high-head, high-volume execution in the same family, matching Warman® GH duties. It handles coarse abrasive slurries at higher heads and pressures than the MG.
Applications: Dredging and sand mining, Gravel and coarse aggregate pumping, Sugar beet and tailings transport, High-volume low-head slurry transfer.
Applications: High-head dredging duties, Coarse abrasive slurries at elevated pressure, Long-distance sand and gravel transfer, Heavy-duty mining and aggregate wash plants.
Features:
Features:
| Item | Matec MG / MGH |
|---|---|
| Matec series | MG / MGH |
| OEM equivalent | Warman® G / GH |
| Typical size / range | High-volume |
| Typical materials | A05 / A07 high-chromeA05 / A07 high-chrome (high-head execution) |
| Common applications | High-volume sand, gravel and coarse solids, dredgingHigh-head coarse abrasive slurries, long-distance transfer |
| Component | Options |
|---|---|
| Impeller | A05 / A07 high-chromeA05 / A07 high-chrome (high-head) |
| Volute / casing liner | A05 / A07 high-chrome volute linerA05 / A07 high-chrome volute liner (high-head) |
| Shaft seal | Packing seal, dynamic expeller seal, mechanical seal (on request) |
| Bearing assembly | Oil-lubricated heavy-duty frame with radial and thrust bearings |
| Drive arrangement | Direct coupling, V-belt drive, variable-speed option |
Browse related Matec pump series for interchangeable alternatives to Warman® models.
MVM / MVR series details and specifications.
Series details →
MSP series details and specifications.
Series details →
MHM / MHR series details and specifications.
Series details →
All Sand & Gravel Pumps series details and specifications.
Series details →Independent manufacturer note. Matec is an independent aftermarket manufacturer and is not affiliated with Weir Minerals or any OEM. Warman® is a registered trademark of Weir Minerals; references are for dimensional and material compatibility identification only.
